SMT Pick and Place Machine RS-1 in LED Lighting Production Line SMD Led Smt Machines pcb assembly machine RS-1 Chip Moun

Brand Name : Pick and Place Machine

Model Number : FUJI PICK AND PLACE MACHINE

Certification : glass sucker

Place of Origin : China

MOQ : window vacuum sucker 5pcs

Price : window vacuum sucker exw price is 17-29usd/pcs

Payment Terms : window vacuum sucker pay by Western Union, MoneyGram, T/T

Supply Ability : window vacuum sucker 50000pcs per month

Delivery Time : window vacuum sucker within 2 days after received payment

Packaging Details : Vacuum Suction lifter packing with carton

Item : window vacuum sucker

Material : ABS

Delivery : 2-3days after payment

Payment : TT, western union, Paypal

Load Capacity : 100kgs

sucker diameter : 125mm

Material of the handle : aluminium die-casting

vacuum glass sucker size : 8inch

MOQ : 5PCS

Contact Now

SMT Pick and Place Machine RS-1 in LED Lighting Production Line SMD Led Smt Machines pcb assembly machine RS-1 Chip Mount

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

JUKI has launched its new High-speed SMT Pick and Place Machine,Equipped with a newly developed parallel 8 nozzle head, the JUKI SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 70%. The JUKI Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle from six to eight, JUKI Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.

Main Features of SMT Modular Surface mounter

No head replacement, newly developed "Parallel 8 nozzle head" with auto-height component recognition sensor

Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.
High placement capacity of 40,000 CPH
The distance between the pickup and placement positions is shortened by adopting the new SMT Pick and Place Machine RF series electric feeder.
Extensive component compatibility
Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the ? (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.
Implementation of smart mounting process.

Specifications	SMT Modular Surface mounter
Board size	50×50mm650×370mmSingle clamping?
Component height	25mm
Component size	0201 74mm/50×150mm
Placement accuracy	Placement accuracy
Feeder inputs	max.112?Using RF feeders
Placement speed	Optimum 42,000CPH
Conveyor specification	standard

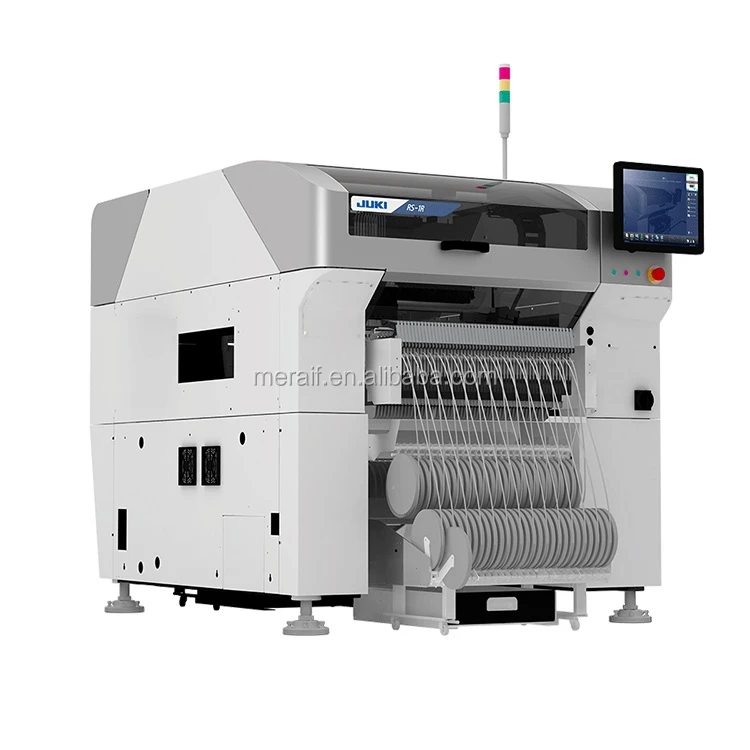

Pick and Place Machine picture show:

SMT Pick and Place Machine RS-1 in LED Lighting Production Line SMD Led Smt Machines pcb assembly machine RS-1 Chip Moun

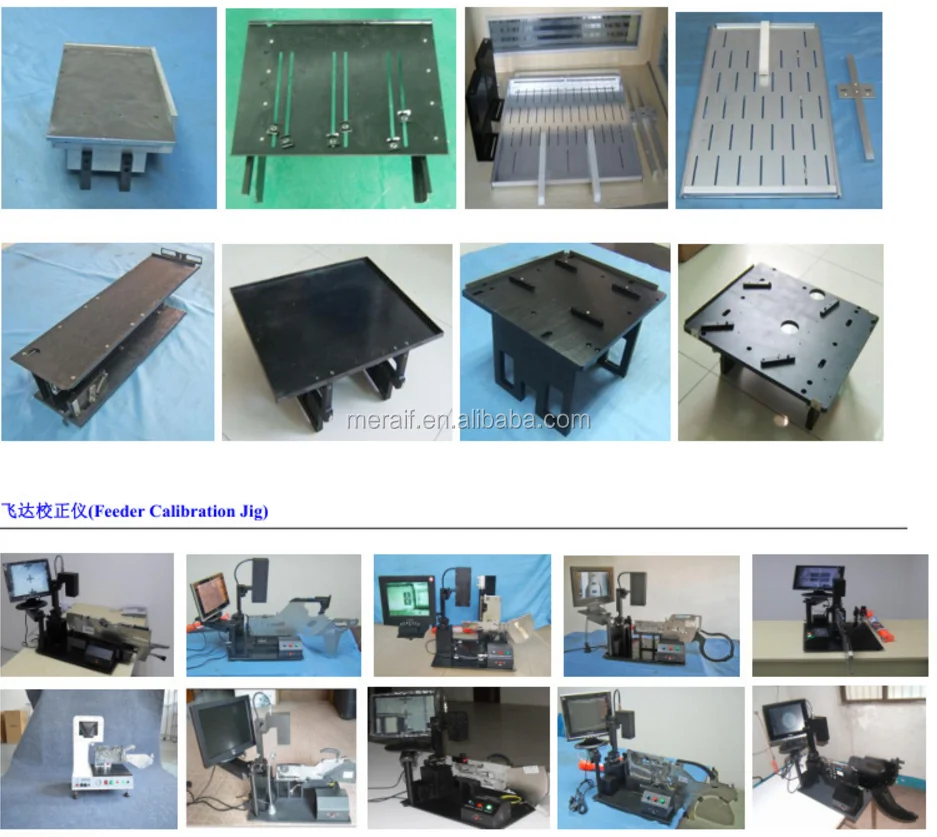

Smt machine parts we can support you as follow:

SMT Pick and Place Machine RS-1 in LED Lighting Production Line SMD Led Smt Machines pcb assembly machine RS-1 Chip Moun

Anything please feel free contact
